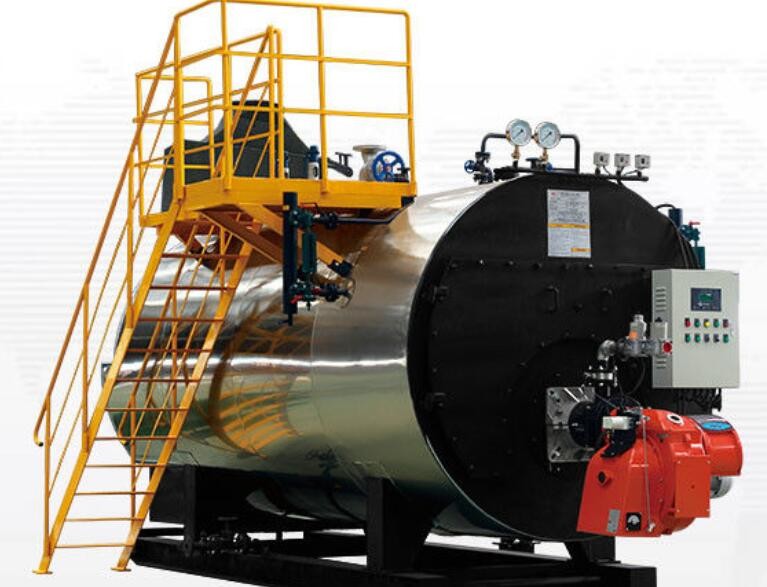

Horizontal Natural Gas Fried Steam Boiler For Textile Industry
Product introduction
1 . The large steam room and high quality steam.
2 . The horizontal structure has adequate heating, heat transfer is full ,load changes operating is stable in boiler, high combustion efficiency.
3 . The boiler is very efficient in combustion , save fuel and lower the operation cost.
4 . Automatically operation, PLC is controllor.
5 . The unique design of the combustion chamber.
6 . After preseting, the purge functions to improve the working conditions of combustion and longevity.
Parameter
| Rated evaporation | t/h | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 | 8 | 10 | |
| Rated working pressure | MPa | 0.7 | 1 | 1 | 1 | 1 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Staturated steam temperature | ℃ | 170 | 184 | 184 | 184 | 184 | 193 | 193 | 193 | 193 | |
| Fuel consumption | Light diesel oil | kg/h | 35 | 70 | 105 | 140 | 210 | 260 | 390 | 520 | 650 |
| Natural gas | Nm³/h | 40 | 80 | 120 | 160 | 240 | 280 | 420 | 560 | 700 | |
| LPG | Nm³/h | 15 | 30 | 45 | 60 | 90 | 120 | 180 | 240 | 300 | |
| City gas | Nm³/h | 85 | 170 | 250 | 340 | 510 | 680 | 1020 | 1360 | 1700 | |
| a Main steam valve diameter | DN | 40 | 65 | 65 | 80 | 80 | 100 | 125 | 150 | 150 | |
| b Safety valve diameter | DN | 40 | 50 | 50 | 40×2 | 40×2 | 50×2 | 65×2 | 80×2 | 80×2 | |
| c Inlet diamater | DN | 25 | 25 | 40 | 40 | 40 | 50 | 50 | 65 | 65 | |
| d Blowoff Valve diameter | DN | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 50 | |
| e Chimney diameter | DN | 250 | 300 | 350 | 400 | 450 | 500 | 650 | 800 | 900 | |
| Overall size | L | mm | 3800 | 4500 | 4700 | 4800 | 5500 | 6310 | 7200 | 7780 | 8330 |
| L1 | mm | 3100 | 3200 | 3600 | 3800 | 4500 | 5230 | 5960 | 6320 | 7040 | |
| W | mm | 1900 | 2300 | 2800 | 2900 | 2900 | 2950 | 3190 | 3440 | 3475 | |
| W1 | mm | 1000 | 1880 | 1900 | 2150 | 2350 | 2350 | 2650 | 2980 | 3040 | |
| H | mm | 2100 | 2680 | 2950 | 3250 | 3880 | 3120 | 3610 | 3700 | 3800 | |
| H1 | mm | 1800 | 1980 | 2070 | 2250 | 2450 | 2530 | 2850 | 2920 | 3050 | |
| Weight | T | 3.3 | 4.6 | 5.5 | 6.3 | 10.6 | 13.8 | 18.5 | 20 | 23 | |
Advantage
1 . Large combustion chamber design
2 . Horizontal structure
3 . Full heat transfer
4 . High thermal efficiency
5 . Clean, no pollution
6 . Safe and reliable
