380V Box Type Furnace Digital Muffle Furnace Leakage Prevented Data Storage Export

Negotiable
MOQ
Negotiable
Price
380V Box Type Furnace Digital Muffle Furnace Leakage Prevented Data Storage Export
Features Gallery Product Description Request A Quote
Features
Specifications
Heating Source: Microwave
Microwave Leakage Intensity: <2mW/cm2,
Temperature Measurement Method: Infrared Thermometer
Max Temperature: 1600℃
Name: High Temperature Muffle Furnace
Warranty: 1 Year
High Light:

high temperature muffle furnace

,

electric muffle furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: OEM
Certification: CE Certification
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton, pallet, wooden case or according to customer's package requirements
Delivery Time: 30 working days
Payment Terms: 30% deposit + 70% T/T before shipping
Supply Ability: 20 sets per month
Product Description

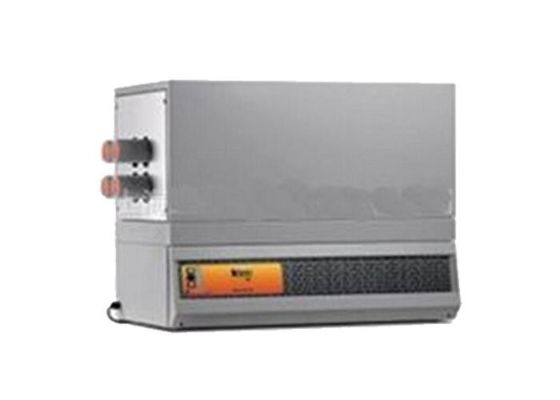

380V, Box Furnace, Microwave Leakage Prevented, Data Storage and Export



  • Description

Microwave Box Furnace is high-temperature equipment with high heating efficiency, rapid heating speed and good heating uniformity compared to traditional eletric heating.

Furnace Body Material: Composite alumina fiber and high-strength refractory materials.

  • Applications

muffle furnace can be applied for Quenching, Annealing or  Normalizing of Various Alloy Steel, Cast Iron and various types of machinery parts.

  • Technical Parameters
Parameters
Microwave System Microwave Output Power 0.10~2.80KW continuously adjustable
Microwave Frequency 2.45GHz
Thermal
Insulation System
Tmax 1600°C
Working Temperature 0~1550°C
Heating Space(L×W×H) 140×140×100mm
Temperature Control
System
Temperature Measurement Method infrared thermometer
Temperature Measurement Range 300°C~1800°C
Temperature Control Precision ±0.1%
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen
40 segments of programmable technical parameters,
real-time curve data display, dynamic data display
Safety System Magnetron Alarm over temperature alarm,
Furnace Door Protection Alarm furnace door shutdown sensor
Overall Dimension Furnace Body(L×W×H) ca. 850×650×750mm
Floor Area <1m2
