Name: Laboratory Vacuum Furnace
Feature: Easy Operation
Dimension(L*W*H): Custom
Cooling Method: Internal Circulation Cooling
Max Operating Temp: 2380 ° C
Application: Silicon Carbide, Ceramics
High Light:

iron melting furnace


steel melting furnace

Basic Infomation
Place of Origin: China
Brand Name: Xirui
Certification: CE
Model Number: Laboratory Vacuum Furnace
Payment & Shipping Terms
Packaging Details: Standard Packing
Delivery Time: Shipped in 25 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 pcs per month
Product Description

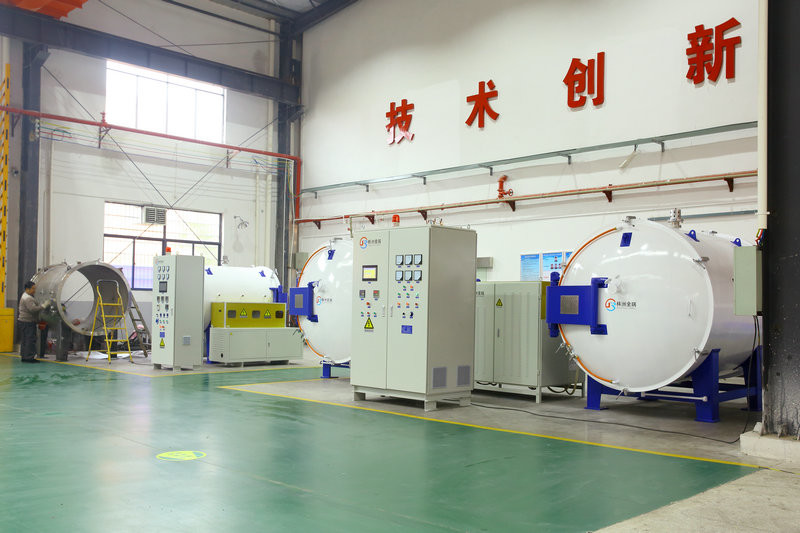

Manual Operation Vacuum Sintering Furnace Japan Island Electric Control


Vacuum Sintering Furnace Application:


Vacuum Sintering Furnace Widely used in rare earth permanent magnet materials, hard alloys, ceramic materials, titanium alloys and other materials vacuum sintering and diamond tool sintering (welding) and vacuum heat treatment process. The series of furnace type structure is mature and practical, and the furnace type and configuration are more. It is a general-purpose equipment used in the field of powder metallurgy sintering.


Technical parameters and specifications:


  1. Inflation pressure ≤ 0.1MPa (absolute pressure)
  2. High temperature metal/graphite material heating system selection to facilitate different material requirements. (This item is user selectable)
  3. The control of the equipment is automatic control throughout the whole process. Automatic and manual operation can achieve bumpless switching. The vacuum degree, temperature and heating power can be automatically recorded during the operation of the equipment, and the data in the production process can be viewed at any time. The device is controlled by a combination of a touch screen and a programmable controller (PLC) for easy and intuitive operation.
  4. The main components of the control system are brand-name products to minimize the failure rate.
  5. The control system is equipped with alarm functions such as over-temperature, over-pressure and water-breaking. The system can automatically process according to the needs, which can reduce the damage to the equipment and ensure the safety of personnel.
  6. The temperature control system uses Japan Island Electric.


Volume (L) 36 96 175 432 784
Effective heating zone (mm) 300X300X400 400X400X600 500X500X700 600X600X1200 700X700X1600
Limit temperature (°C) 1600 1600 1600 1600 1600
Power (KW) 60 90 150 210 300
Temperature control method Japanese island electric thermostat
Vacuum system Slide valve pump + Roots pump or increase diffusion pump as required
Rated power supply voltage (V) 380V
Rated heating voltage (V) According to the design, configure the transformer
