AC 220V 50HZ Hot Air Vacuum Drying Cabinet

AC 220V 50HZ Hot Air Vacuum Drying Cabinet
Features Gallery Product Description Request A Quote
Workroom Dimensions(mm): 650x600×976
Exterior Dimensions(mm): 1053×745×1020
Temperature Range: 35℃ ~+350 ℃
Temperature Fluctuation: ± 1°C
Temperature Resolution: ±0.1°C
Vacuum Degree: <133pa
High Light:

high temperature drying oven


lab drying oven

Basic Infomation
Place of Origin: CHINA
Brand Name: OEM
Certification: CE Certification
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton, pallet, wooden case or according to customer's package requirements
Delivery Time: 30 working days
Payment Terms: 30% deposit + 70% T/T before shipping
Supply Ability: 20 sets per month
Product Description

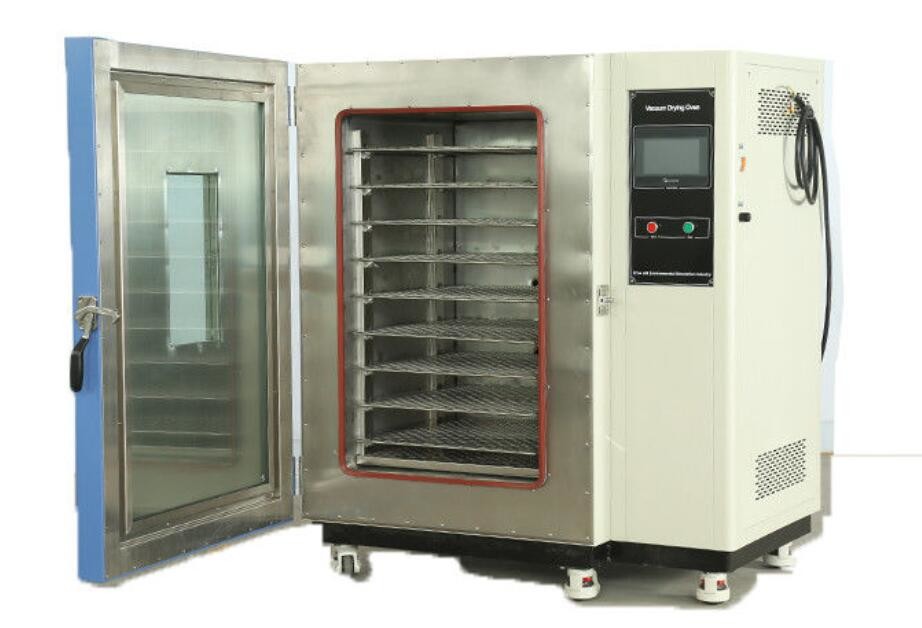

Laboratory Hot Air Vacuum Drying Cabinet Vacuum Drying Oven





Laboratory Hot Air Vacuum Drying Cabinet Vacuum Drying Oven, the material is to be dried under vacuum conditions, heating and drying. Use vacuum pump to pump air and humidity out, make the working room form vacuum, speed up the drying speed.

  • When the heating temperature constant, increase the degree of vacuum, can speed up the drying rate.
  • When the vacuum is constant, increase heating temperature, can speed up the drying rate.
  • Both o improve the degree of vacuum, and improve the heating temperature, greatly speed up the drying rate.




Laboratory Hot Air Vacuum Drying Cabinet Vacuum Drying Oven used in the temperature variation tests, cold resistance tests and storage with low-temperature in the fields of aerospace, aviation, electronics, instrument, electric products, materials, parts and components and equipment to analyze and evaluate the property and performance of the samples under the simulated conditions.





Name Laboratory Hot Air Vacuum Drying Cabinet Vacuum Drying Oven
Workroom dimensions(mm) 650x600×976
Exterior dimensions(mm) 1053×745×1020
Temperature range 35℃ ~+350 ℃
Temperature fluctuation ± 1°C
Temperature resolution ±0.1°C
Vacuum degree <133pa
Controller Digital PID Temperature Controller
Sensor PTR Platinum Resistance PT100
Interior material SUS304 stainless steel
Exterior material Steel plate with protective coating
Timing Function 0.1~999.9 (S,M,H) settable
Power Supply AC 220V 50HZ


  • Under Vacuum condition, the boiling point of materials solution is reduced. So to a certain amount of heat transfer, it saves the evaporator heat transfer area.
  • Heat source for operation of evaporation can use low-pressure steam or waste heat steam.
  • The heat loss of the evaporator can be reduced.
  • Used in drying of decompose and polymerize and deterioration of heat-sensitive materials at high temperature.
  • Before drying can be disinfected, the drying process were not mixed with any impurities
  • It is a static vacuum dryer, compact solid dry material is not damaged.



Packing & Shipping
  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 3.3 m³, gross weight: 370kg
After-Sales Service


3 Years Warranty, Lifelong Follow-up Services.

Training how to install and operate the machine.

Training how to maintain the machine.

Response within 24 hours once got questions from customers.

Send spare parts within 2 days after got notice.

Engineers available to service machines overseas to install and commissioning.



Quality Guarantee


We control quality from the materials, electronic parts, controller, compressor, solenoid valve, pumps, lamps, accessories and many assembly parts of the products. After test chamber completed, we test its performance, inspect its functionality, go commissioning, work on calibration, and issue report for every steps, to guarantee the quality.


Professional Team

We have elite team to service our customers. We provide professional solutions, right equipments, accurate answers, and timely reply to our worldwide customers.
