Degreasing Zirconia Sintering Furnace Accurate Vacuum Melting Easy Installation

Degreasing Zirconia Sintering Furnace Accurate Vacuum Melting Easy Installation
Features Gallery Product Description Request A Quote
Name: Degreasing Zirconia Sintering Furnace
Feature: Easy Operation
Dimension(L*W*H): Custom
Heating: Resistance Heating
Max Operating Temp: 1600 ° C
Application: Zirconia
High Light:

high temperature vacuum furnace


vacuum brazing furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: OEM
Certification: CE Certification
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton, pallet, wooden case or according to customer's package requirements
Delivery Time: 30 working days
Payment Terms: 30% deposit + 70% T/T before shipping
Supply Ability: 20 sets per month
Product Description

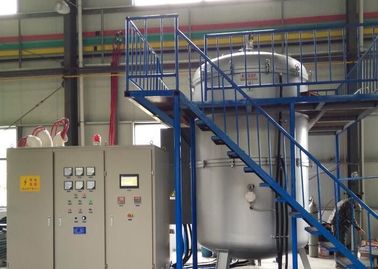

Degreasing Zirconia Sintering Furnace / Accurate Vacuum Melting Furnace


Application :


Mainly used for degreasing and sintering of cemented carbide, powdered stainless steel, magnetic materials, special ceramics, refractory metals and alloys (tungsten, molybdenum, tungsten-copper alloy).




Two production processes of continuous degreasing and sintering can be realized in the same furnace. Degreasing and sintering in the furnace can eliminate repeated product movement, heating and cooling, improve product quality, shorten production cycle and improve production efficiency;


It can be implemented under argon, nitrogen and reducing gas separation, low pressure sintering to reduce elemental volatilization loss;


Directional differential pressure airflow degreasing, enhanced degreasing effect, no dead fat in the furnace, more complete degreasing;


It is heated by graphite heating element and is divided into multiple zones for independent temperature control. The programmable PID adjusts the temperature precisely and evenly;


Special degreasing sealing box and fat trap, no internal furnace wall, heat shield and heating body pollution, degreasing and collecting grease is more effective;

Inflation flow control, pressure control device in the furnace, realize micro-negative and constant-pressure sintering, inhibit metal volatilization loss, and improve product compactness and quality;


Accurate and reliable humanized graphical user interface (human-machine touch screen) and analog operation screen.


Volume (L) 54 85 160 300 484
Rated temperature (°C) 1500 1500 1500 1500 1500
Maximum furnace temperature (°C) 1600 1600 1600 1600 1600
Power (KW) 75 90 120 200 300
Effective heating zone (mm)











Temperature control method Japan Island Electric Thermostat
heating method Resistance heating
Vacuum system Spool valve vacuum pump + Roots vacuum pump
Sintering atmosphere vacuum
Rated power supply voltage (V) 380
Rated heating voltage (V) According to the design, configure the furnace transformer
Ultimate vacuum (Pa) 6X10ˉ2 (vacuum cold state)
