Product Description

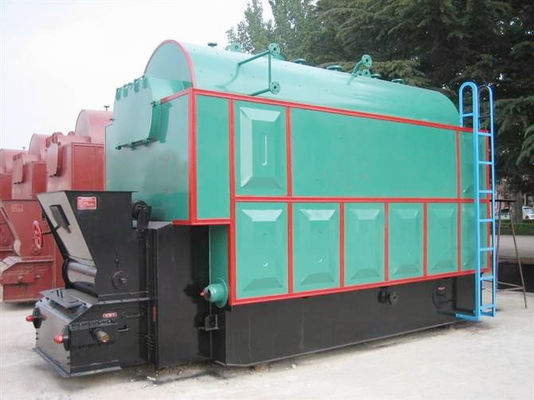

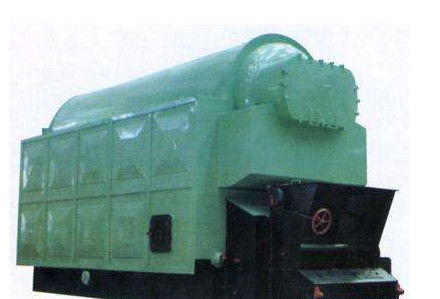

Series Biomass Fired Steam Boiler
The new is a cylinder drawn with coatings and bridges. The walls visible on the left and right sides of the boiler have a distinct fire balance.
A new technique is used at the bottom of the seam: the two wings of the body warm the whole body, but the mold contains a stainless steel heater (57 x 3). The fire extinguisher protects the object and has three sides on the outside.
Product Features
1. Easy to install:
Of course, high-speed compressors are easy to transport and install, which reduces construction time, saves installation costs and can efficiently transport fireplaces.
2. Trust input:
The heating system is designed accurately and accurately with a water retention system and a heating system to ensure air safety.
3. Repair and maintenance:
The drums have the same material for analysis. It is recommended to open the fuse in front of the hob so that staff can easily and effectively monitor and create appropriate medical conditions.
4. Disclaimer:
This oil is heated to remove black smoke from a secondary air line and a stationary automobile engine.
5. Golf:
The air is purged from any vacuum cleaner and fixed to the surface to prevent water leakage, fuel pump, air resistance, efficiency and efficiency beyond the benefits of simple air.
6. Dry straw:
In a fire, high levels of combustion can occur with combustion that removes dust from the ground, prevents operational errors, reduces heat and ash, and increases the risk of combustion.
Technical Parameters
Main Technical Parameters of Biomass Series Steam Boiler
| Steam Capacity | t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
| Working Pressure | MPa | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 |
| Steam Temperature | ℃ | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 | 193/204 |
| Feed Water Temperature | ℃ | 20 | 20 | 20 | 20 | 20 | 20 | 60 |
| Thermal Efficiency | / | ≥82% | ||||||
| Fuel | / | Biomass particles | ||||||
| Fuel Consumption | Kg/h | 176.6 | 352.3 | 571 | 522 | 1044 | 1396.5 | 1743.3 |
| Heating area | m2 | 39.82 | 86 | 120.2 | 174.32 | 220.6 | 317 | 409 |
| Grate area | m2 | 1.97 | 3.2 | 4.8 | 5.5 | 7.04 | 11.7 | 13.6 |
| Power consumption | Kw | 18 | 26 | 31.5 | 34 | 62.4 | 76.4 | 87.2 |
| water volume | m3 | 4.5 | 4.68 | 5.9 | 6.3 | 11 | 13.8 | 16.5 |
Note:biomass particles 17084KJ/Kg (4085Kcal/Kg). If the low calorific value of biomass fuel is larger than this value, the corresponding fuel consumption will be more economical than the value in the table.
External and Interface Dimension of Biomass steam boiler
| Steam Capacity | t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
|
Transport Dimension
|
L | mm | 5100 | 6140 | 6330 | 6880 | 7290 | 7800 | 8500 |
| W | mm | 2200 | 2600 | 2700 | 2700 | 3190 | 3400 | 3400 | |
| H | mm | 2900 | 3300 | 3300 | 3300 | 3700 | 3700 | 3700 | |
| Mainframe Transport Weight | / | t | 15 | 18 | 24 | 27 | 31 | 33 | 41 |
| Main Steam Valve Pipe Diameter | DN | mm | 65 | 80 | 100 | 100 | 125 | 150 | 150 |
| Feed Water Valve | DN | mm | 40 | 40 | 40 | 40 | 50 | 50 | 50 |
| Safety Valve Diameter | DN | mm | 2*40 | 2*50 | 2*50 | 2*50 | 50/80 | 2*80 | 2*80 |
| Drain Valve Pipe Diameter | DN | mm | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 | 3*40 |
| Chimney Diameter | φ | mm | 280 | 350 | 410 | 410 | 530 | 720 | 750 |
Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
