Continuous CCM Casting Machine Rigid Dummy Bar And Tundish For Four Strands

Negotiable
MOQ
Negotiable
Price
Continuous CCM Casting Machine Rigid Dummy Bar And Tundish For Four Strands
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Square Round And Slab CCM
Application: CCM
Condition: Brand New
Strand: 4
Billet Length: 6
Billet Size: As Required
High Light:

continuous casting machine

,

aluminium continuous casting machine

Basic Infomation
Place of Origin: CHINA
Brand Name: OEM
Certification: CE Certification
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton, pallet, wooden case or according to customer's package requirements
Delivery Time: 30 working days
Payment Terms: 30% deposit + 70% T/T before shipping
Supply Ability: 20 sets per month
Product Description

CCM Continuous Casting Machine Radius 6m 4 strands 6 meter billets





We also produce this ccm to produce barass bar ,copper bar etc..



Ⅰ. Technical data



Casting radius: R6m



Strand number: four



Ladle support: Rotor turret



Tundish support: moving car



Cutting method: automatic hydraulic cutting machine



Dummy bar: rigid



Billets length: 6 m



Cooling bed: step-by-step



Steel grade: 20MnSi,Q215,Q315,45#



Billet size: 100-150sq.mm



Electrical system:

         SIEMENS Transducer, SIEMENS PLC, SCHNEIDER contactors . PLC automatic controlling



Cooling water for mould: Q=500m3/h, P=90m



Secondary cooling water: Q=100m3/h, P=60m



Cooling water for mechanism: Q=80m3/h, P=30m



Electricity consumption:



for on-line equipment: 120KW



for water, gas and other equipment: 250KW







Ⅱ. Supply cope



1. On-line equipment list



No Equipment name Unit Qty. Remark
1 Ladle turret PCS 1 80t capacity for each arm

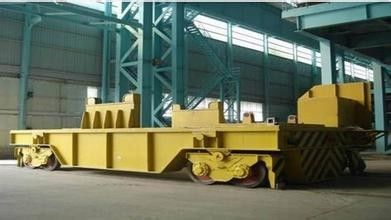

2 Tundish moving car PCS 2
3 Tundish PCS 2

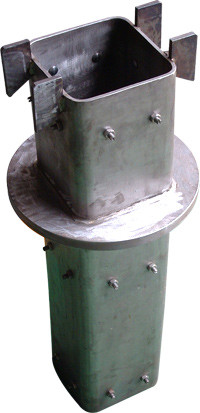

4 130sq.mm mould PCS 4
5 Mould cover SET 4

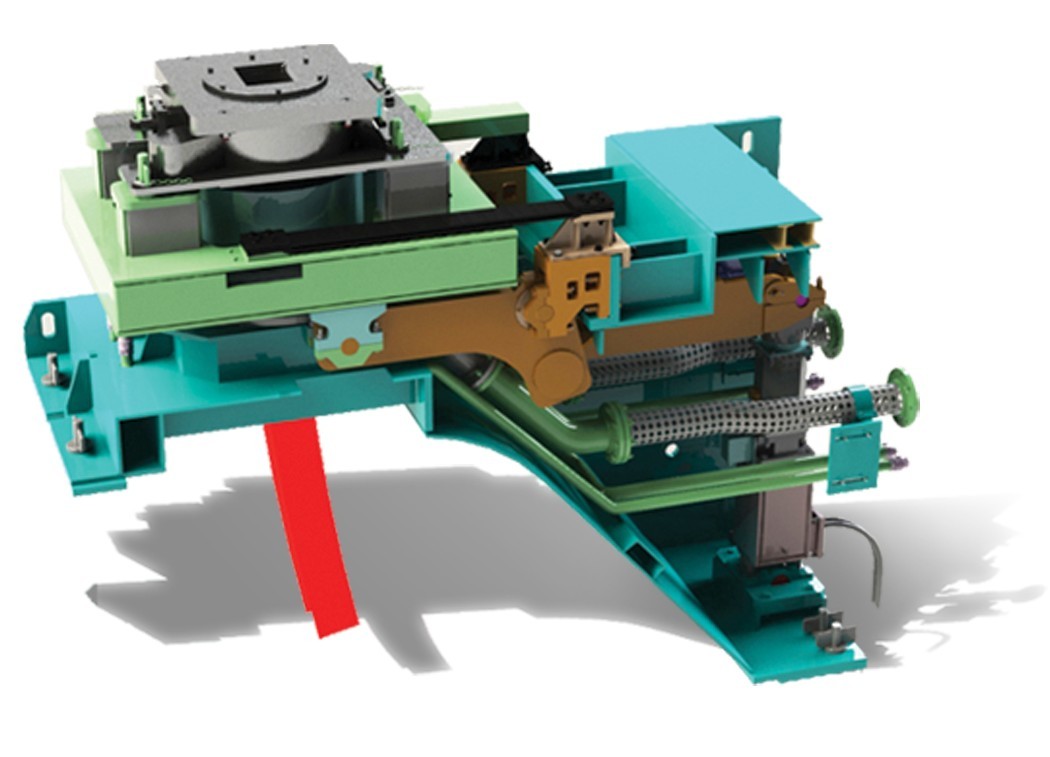

6 Oscillation device SET 4
7 Spraying pipe and support SET 4
8 Guide segment for secondary cooling water SET 4
9 Steam exhaustion system SET 1
10 Withdrawal straightening machine SET 4
11 Dummy bar PCS 4
12 Dummy bar head SET 4
13 Dummy bar storage device SET 4
14 Roller table before cutting Group 4
15 Transmit roller table Group 4
16 Discharge roller table Group 4
17 Automatic hydraulic cutting machine SET 4
18 Pusher SET 1
19 Cooling bed SET 1 Step by step
20 Overflow chute PCS 8
21 Hydraulic station SET 1
22 Secondary cooling water distribution system SET 4
23 Spraying nozzle PCS 400 Including 100 PCS for foot roller
24 Electrical and instrument system SET 4
a Electrical system
b Local instrument system
25 Steel structure platform SET 1







2,Mounting materials



No. Equipment name Unit Qty. Remark
1 Mounting materials A lot 1
1.1 -- for electricity and instrument system   1
1.2 -- for hydraulic station   1
1.3 -- for cooling water distribution system   1







3,Auxiliary equipment



No. Equipment name Unit Qty. Remark
1 Mould test table PCS 2
2 Drainage gun PCS 4
3 Cutting gun PCS 4
